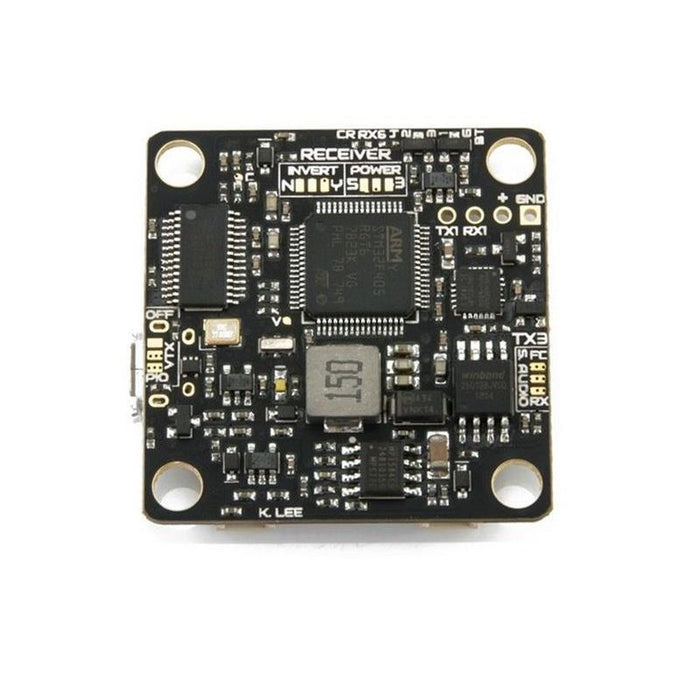

Details | Synergy F4 AIO FC

WhitenoiseFPV bringt mit der SynergyF4 AIO eine bahnbrechende Neuerung, denn RX und VTX (siehe Beschreibung), können direkt auf die F$ montiert werden. Das spart ungemein die typischen Kabel.
Mit aktuellem F4 Chipsatz, 6000er Main Processing Unit ist sie up-to-date.

Die technische Spezifikation spricht für sich.

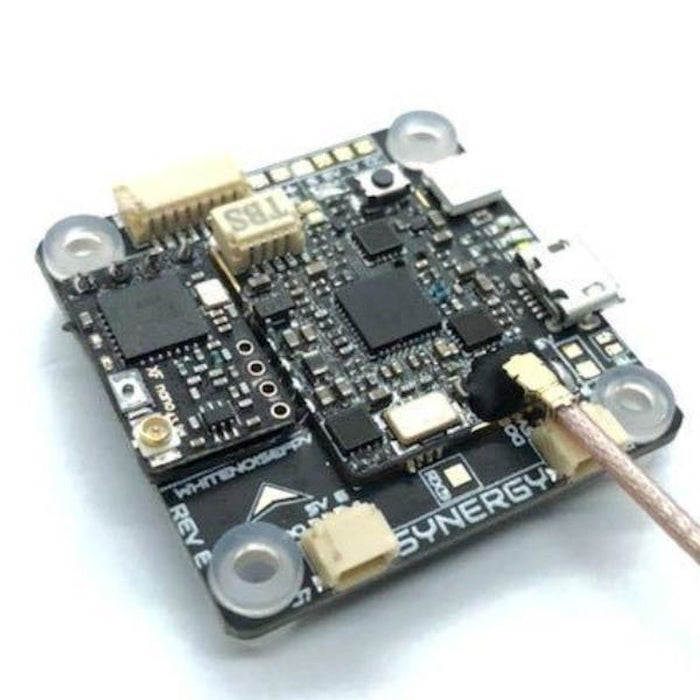

Direct mounting for Unify Pro (5V) and Unify Nano (with adapter).
Header holes for direct receiver installation.
Built in camera control via single wire (analog only)
Built in BetaflightOSD
Buzzer: Dedicated pads for 5V (100mA max) buzzers.
Onboard addressable LED.
Built in Tiny?s LEDs RealPit VTX power switch (selectable between ON-OFF-Remote)
Receiver can be powered on via USB (VTX stays off)
SmartAudio: Selectable between internal (FC controlled) and external (receiver).

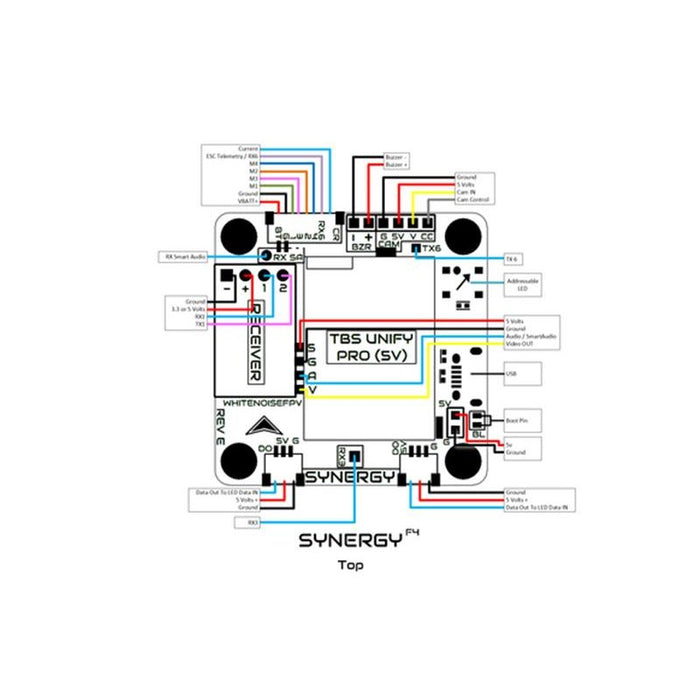

UART1: Receiver (FrSky, Spektrum, Crossfire, etc).
UART3: SmartAudio (or any other desired output if SmartAudio is selected to pull signal from the ?external? pad, designated RX SA on the top of the FC).
UART6: ESC Telemetry (if applicable) or UART Cam control

SYNERGY SPECIFIC CHANGES from OmnibusF4 Target

Gyro:

-set align_gyro = CW0FLIP
-set align_acc = CW0FLIP

Camera Control (optional):

-resource CAMERA_CONTROL 1 A08

PinIO (optional, only if selected via the solder bridge):

-resource pinio 1
-set pinio_box = 39
-set vtx_pit_mode_freq = 0

Spezifikation

• Processor: STM32F405 (F4 processor)
• Gyro: MPU6000
• Loop: 8k/8k
• Input: 2-6S (Max 28V)
• Regulator: Filtered 5V 3A

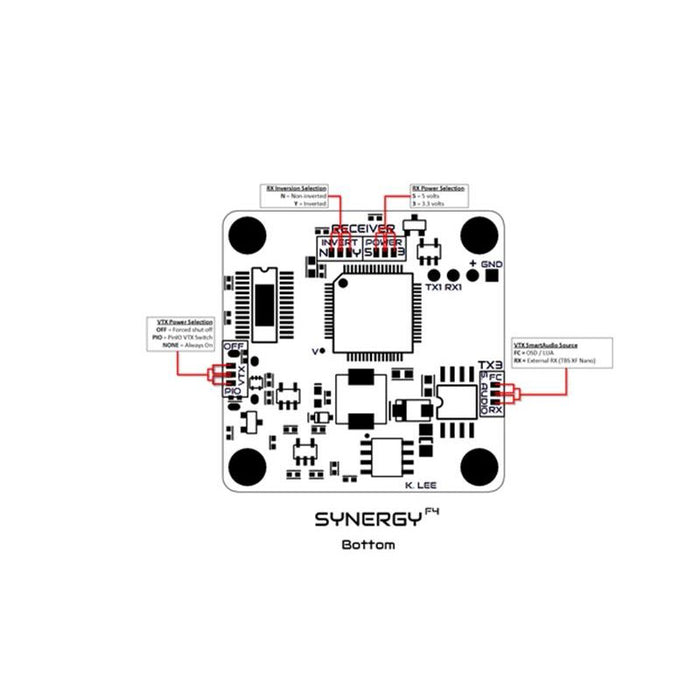

• Receiver: 3.3V or 5V selectable. Inverted and non-inverted selectable receiver input.
• Connectors: 8 pin JST-SH main connector. 2x 3 pin JST-SH Addressable LED connectors (mirrored output)
• Telemetry: Current Sensor and ESC Telemetry Input
• Blackbox: 128Mb flash
• Motor: 4 pwm motor outputs with D-Shot and Multishot support.
• Mounting: M3 30.5x30.5mm holes with soft mounting
• Dimensions: 37x37mm
• Weight: 7.5g
• Camera: Filtered 5V output

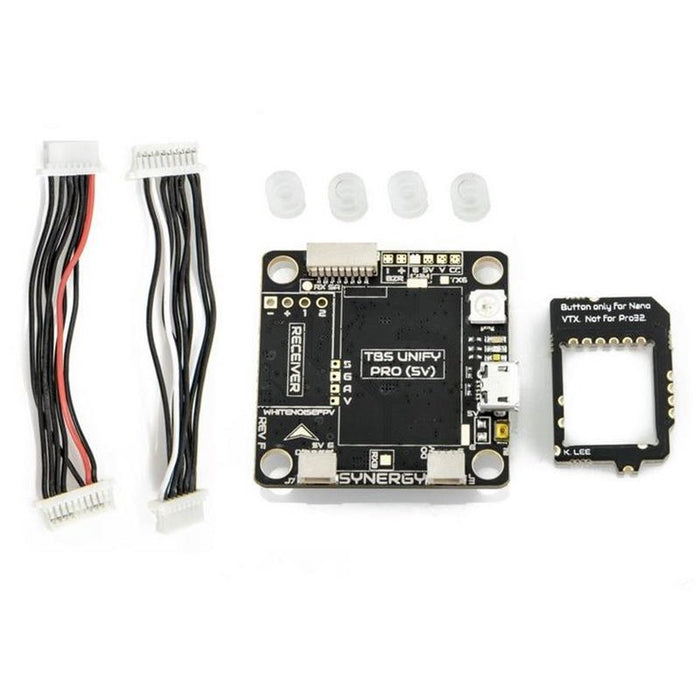

Lieferumfang

• 1x WhitenoiseFPV SynergyF4 AIO FC
